Delphi MD

Client

QuantalX

2021-2023

Delphi·MD Probes brain health by directly ‘pinging’ brain network and tracking its response in a safe, objective manner. It’s a 1st of a kind technology, therefore an all new design approach was required to answer the challenges of the clinical protocol. New mechanism and applications were developed under tough regulations.

Design Strategy
User research
Ideation
Conceptual Design
Styling
UI/UX
Design for manufacturing
Textile
Testing

Delphi MD

Process

The Stimulator

Eliminating a former paradigm of an exo-skull solution (the arched headphones as illustrated), into a softer solution leaching on the patient head, was a crucial breakthrough in the development.

Delphi MD

Process

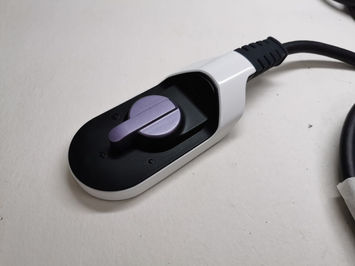

The Probe

HealX Medical revolutionary solution enabled reducing the probe weight by more then 50%, enabling it to be hand-held device, without the help of a mechanical arm. Furthermore, the procedure itself requiered multiple projection points on the patient head. 2 solutions where designed - a mechanical and soft textiled anchoring systems to the patient's EEG cap. The soft solution won the race...

Delphi MD

Process

The Cap

Common EEG cap are made of strechable fabrics to provide tight contact of the electrodes to the patient's head. Our usabilty concept required The cap to carry an additional exterior weight of the probe. 2 caps were developed with HELEK studio to address this contadiction on both probe solutions. The probe is now attached to the cap with velcro straps, enabaling the operator a flexible more intuitive work flow.
